The PEM fuel cell test bench can be used for comprehensive testing of fuel cell stacks and systems, including electrochemistry tests, sensitivity tests, performance tests, and durability tests. Specifically designed for advanced pem stack testing applications, this system meets the high standards required by leading fuel cell test station manufacturers like Tensor Technologies, ensuring precise, reliable, and repeatable testing results.
| DUT | Model | Min P/kW | Max P/kW | H2/NLPM | Air/NLPM | Inlet DP/°C | Gas Temp/°C | Coolant/LPM | Current/A | Cell# | Stack Temp/°C | Gas Pressure /kPag | Cell Hardware | Endplate Heating | 0V Operation | Cell Reverse | EIS | HFR | Rapid Humid | Dynamic Pressure | Active Cooling | Anode Deadend | Cold Start | Water Balance |
| PEM Fuel Cell MEA Tester | PM100W | 0.005 | 0.1 | 2 | 5 | 90 | 100 | 120 | 1 | 90 | 300 | O | Y | O | O | O | O | |||||||

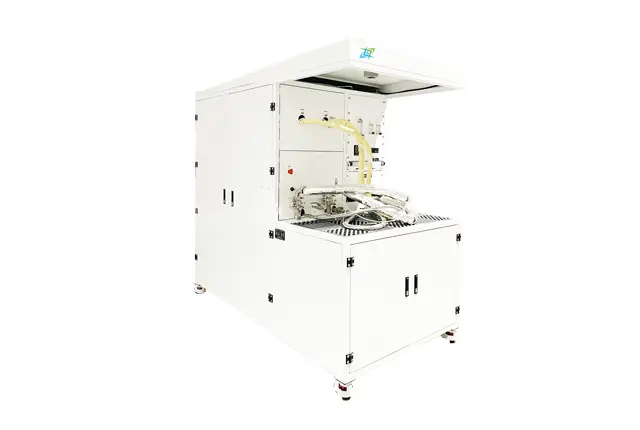

| PEM Fuel Cell Short Stack tester | PM20 PEM | 1 | 20 | 500 | 1500 | 90 | 100 | 60 | 1000 | 80 | 90 | 300 | O | O | O | O | O | |||||||

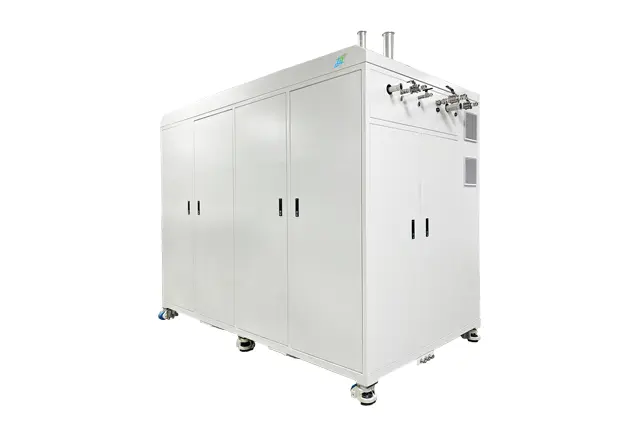

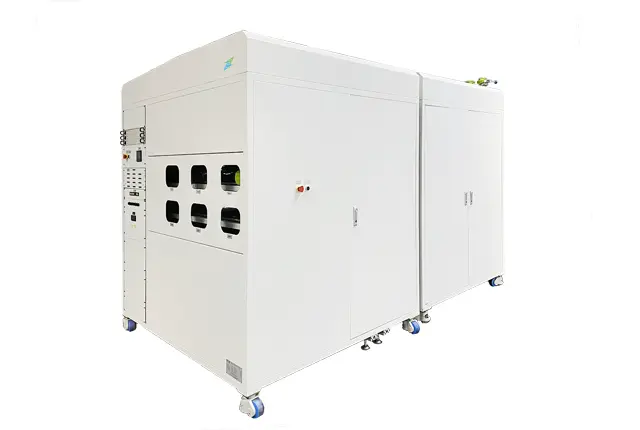

| PEM Fuel Cell Stack Tester | PM300 PEM | 15 | 300 | 8000 | 20000 | 90 | 95 | 900 | 1000 | 900 | 90 | 300 | O | O | O | |||||||||
| PEM Fuel Cell Stack Tester | PM400 PEM | 20 | 400 | 9600 | 27000 | 90 | 95 | 1200 | 1000 | 1200 | 90 | 300 | O | O | O | |||||||||
| PEM Fuel Cell Stack Tester | HT250 PEM | 12.5 | 250 | 7000 | 900 | 1000 | 90 | 300 | ||||||||||||||||

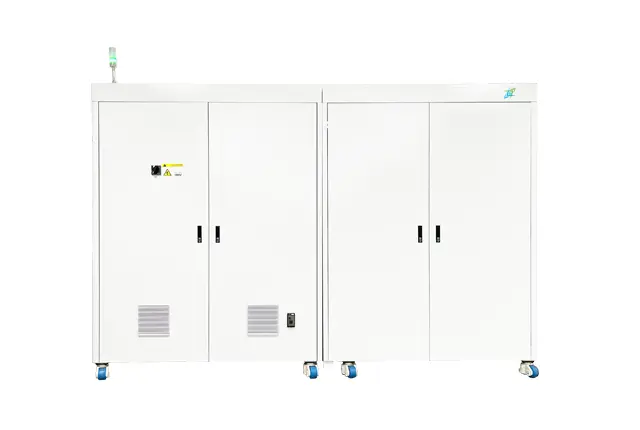

| PEM Fuel Cell Stack Activation Station | EOL200 | 10 | 200 | 4800 | 13500 | 90 | 95 | 600 | 1000 | 600 | 90 | 300 | O | O |
1. H-Fueling Module
As a core component of the fuel cell test station, the H-Fueling Module provides precise fueling and oxidant process control (including composition and mass flow, fueling temperature, and humidity), ensuring stable and accurate operating conditions for every pem fuel cell test.
2. Hydrogen Test
The specialized test software Nova, developed for hydrogen energy testing, enhances the performance of our advanced fuel cell tester with industry-leading flexibility and digital integration. It supports fuel cell testing of pem stacks through test strategy development, working condition simulation, test data collection, display, analysis, traceability, and enterprise intranet cloud connectivity, as well as 24-hour unattended operation. This further improves the automation and intelligence level of the fuel cell test station.
3. Dynamic Response – Power Dynamic
The fuel cell dynamic response simulation module supplies fast and reliable conditions that match real-world traffic application scenarios. Designed to meet advanced pem fuel cell test requirements, it enables comprehensive fuel cell testing of pem stacks, including dynamic control of anode and cathode reactant supply, stack temperature, reaction pressure, and load.
PEM fuel cell testing and diagnosis involves performance evaluation, degradation analysis, fault detection, and dynamic response simulation of proton exchange membrane stacks. A professional PEM tester can test PEM stacks under real-world operating conditions to identify efficiency losses and material degradation.
PEM material testing focuses on evaluating membrane conductivity, mechanical strength, gas permeability, and long-term stability. It is a critical step in improving fuel cell stack technology and ensuring optimal performance during hydrogen fuel cell test operations.
Fuel components testing includes:
Gas composition analysis
Flow rate control validation
Humidity regulation testing
Pressure stability checks
These procedures ensure safe and accurate fuel cell testing within a professional fuel cell test stand.
